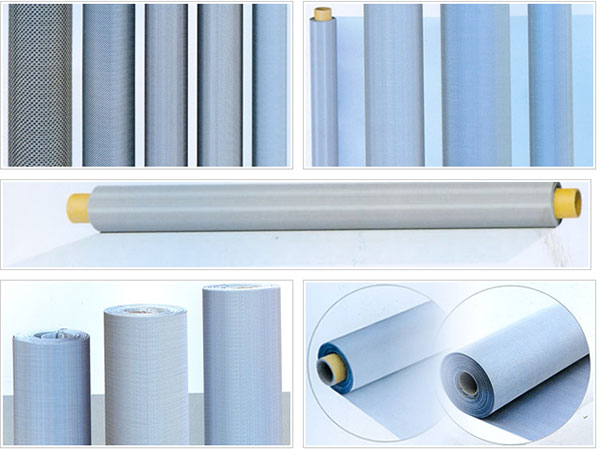

不锈钢平纹密纹网/不锈钢反向密纹网/不锈钢斜纹密纹网/不锈钢斜纹密纹网
用途:石油、化工、汽车电子、航空、航天、食品、医药等行业。
材质: 304、316、304L、316L、310S、430、317L、904L、哈氏合金、N6、耐高温材料等

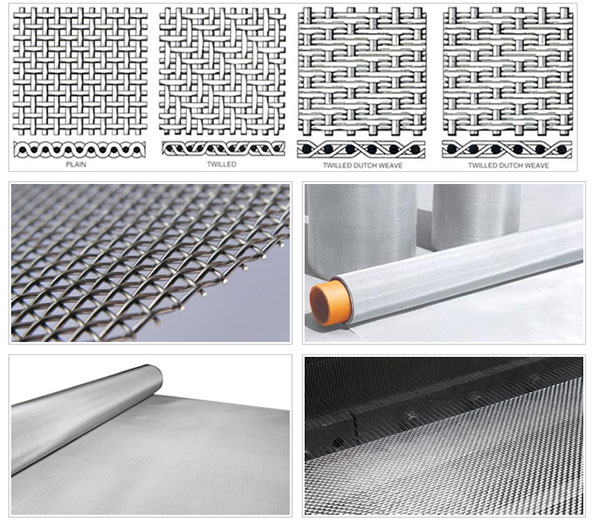

编织方式:平纹、斜纹、密纹,其中密纹网包括平纹-密纹,斜纹-密纹,双径丝密纹,反向平纹密纹,反向斜纹密纹,优化组合网。
性能: 具耐酸、耐碱、耐高温、耐磨等性能
技术参数表
Mesh Count per Inch | Wire Diameter mm | Aperture Size mm | Open Area | Weight for Stainless Steel (kg/sq m) |
2 | 1.8 | 10.9 | 74% | 3.22 |
2 | 1.6 | 11.1 | 76% | 2.54 |
2 | 1.4 | 11.3 | 79% | 1.95 |
3 | 2 | 6.467 | 58% | 5.96 |
3 | 1.8 | 6.667 | 62% | 4.83 |
3 | 1.6 | 6.867 | 66% | 3.82 |
3 | 1.4 | 7.067 | 70% | 2.92 |
4 | 2 | 4.35 | 47% | 7.95 |
4 | 1.8 | 4.55 | 51% | 6.44 |
4 | 1.6 | 4.75 | 56% | 5.09 |
4 | 1.4 | 4.95 | 61% | 3.89 |
4 | 1.2 | 5.1 | 65% | 3.11 |
4 | 1 | 5.35 | 71% | 1.99 |
4 | 0.9 | 5.45 | 74% | 1.61 |
5 | 1.2 | 3.83 | 57% | 3.88 |
5 | 1 | 4.08 | 65% | 2.48 |
6 | 1.6 | 2.633 | 39% | 7.63 |
6 | 1.4 | 2.833 | 45% | 5.84 |
6 | 1.2 | 3.033 | 51% | 4.29 |
6 | 1 | 3.233 | 58% | 2.98 |
6 | 0.9 | 3.333 | 62% | 2.41 |
6 | 0.8 | 3.433 | 66% | 1.91 |
6 | 0.71 | 3.523 | 69% | 1.5 |
8 | 1.25 | 1.925 | 37% | 6.21 |
8 | 1.12 | 2.055 | 42% | 4.99 |
8 | 1 | 2.175 | 47% | 3.97 |
8 | 0.9 | 2.275 | 51% | 3.22 |
8 | 0.8 | 2.375 | 56% | 2.54 |
8 | 0.71 | 2.465 | 60% | 2 |
8 | 0.63 | 2.545 | 64% | 1.58 |
8 | 0.56 | 2.615 | 68% | 1.25 |
10 | 0.9 | 1.64 | 42% | 4.02 |
10 | 0.8 | 1.74 | 47% | 3.18 |
10 | 0.71 | 1.83 | 52% | 2.5 |
10 | 0.63 | 1.91 | 57% | 1.97 |
10 | 0.56 | 1.98 | 61% | 1.56 |
10 | 0.5 | 2.04 | 65% | 1.24 |
12 | 0.8 | 1.317 | 39% | 3.82 |
12 | 0.71 | 1.407 | 44% | 3.01 |
12 | 0.63 | 1.487 | 49% | 2.37 |
12 | 0.56 | 1.557 | 54% | 1.87 |
12 | 0.5 | 1.617 | 58% | 1.49 |
12 | 0.45 | 1.667 | 62% | 1.21 |
14 | 0.56 | 1.254 | 48% | 2.18 |
14 | 0.5 | 1.314 | 52% | 1.74 |
14 | 0.45 | 1.364 | 57% | 1.41 |
14 | 0.4 | 1.414 | 61% | 1.11 |
14 | 0.355 | 1.459 | 65% | 0.88 |
14 | 0.315 | 1.499 | 68% | 0.69 |
16 | 0.63 | 0.958 | 36% | 3.15 |
16 | 0.56 | 1.028 | 42% | 2.49 |
16 | 0.5 | 1.088 | 47% | 1.99 |
16 | 0.45 | 1.138 | 51% | 1.61 |
16 | 0.4 | 1.188 | 56% | 1.27 |
16 | 0.355 | 1.233 | 60% | 1 |
16 | 0.315 | 1.273 | 64% | 0.79 |
18 | 0.236 | 1.175 | 83% | 0.5 |
20 | 0.56 | 0.71 | 31% | 3.12 |
20 | 0.5 | 0.77 | 37% | 2.48 |
20 | 0.45 | 0.82 | 42% | 2.01 |
20 | 0.4 | 0.87 | 47% | 1.59 |
20 | 0.355 | 0.915 | 52% | 1.25 |
20 | 0.315 | 0.955 | 57% | 0.99 |
24 | 0.45 | 0.608 | 33% | 2.41 |
24 | 0.355 | 0.703 | 44% | 1.5 |
24 | 0.315 | 0.743 | 49% | 1.18 |
28 | 0.355 | 0.552 | 37% | 1.75 |
28 | 0.315 | 0.592 | 43% | 1.38 |
30 | 0.355 | 0.492 | 34% | 1.88 |
30 | 0.315 | 0.532 | 39% | 1.48 |
30 | 0.28 | 0.567 | 45% | 1.17 |
30 | 0.25 | 0.597 | 50% | 0.93 |
30 | 0.224 | 0.623 | 54% | 0.75 |
36 | 0.25 | 0.456 | 42% | 1.12 |
36 | 0.224 | 0.482 | 47% | 0.9 |
36 | 0.212 | 0.494 | 49% | 0.8 |
40 | 0.224 | 0.411 | 42% | 1 |
40 | 0.212 | 0.435 | 47% | 0.79 |
40 | 0.19 | 0.445 | 49% | 0.72 |
40 | 0.132 | 0.503 | 79% | 0.35 |
50 | 0.21 | 0.298 | 34% | 1.1 |
50 | 0.2 | 0.308 | 37% | 0.99 |
50 | 0.19 | 0.318 | 39% | 0.9 |
50 | 0.16 | 0.348 | 47% | 0.64 |
50 | 0.15 | 0.358 | 50% | 0.56 |
60 | 0.18 | 0.243 | 33% | 0.97 |
60 | 0.16 | 0.263 | 39% | 0.76 |
60 | 0.14 | 0.283 | 45% | 0.58 |
70 | 0.15 | 0.213 | 34% | 0.78 |
70 | 0.14 | 0.223 | 38% | 0.68 |
70 | 0.125 | 0.238 | 43% | 0.54 |
80 | 0.14 | 0.178 | 31% | 0.78 |
80 | 0.125 | 0.193 | 37% | 0.62 |
100 | 0.112 | 0.142 | 31% | 0.62 |
100 | 0.1 | 0.154 | 37% | 0.5 |
100 | 0.09 | 0.164 | 42% | 0.4 |
100 | 0.08 | 0.174 | 47% | 0.32 |
120 | 0.09 | 0.122 | 33% | 0.48 |
120 | 0.08 | 0.132 | 39% | 0.38 |
120 | 0.065 | 0.147 | 48% | 0.25 |
140 | 0.08 | 0.101 | 31% | 0.45 |
150 | 0.071 | 0.098 | 34% | 0.38 |
150 | 0.065 | 0.109 | 42% | 0.27 |
165 | 0.05 | 0.104 | 46% | 0.2 |
180 | 0.06 | 0.081 | 33% | 0.32 |
180 | 0.05 | 0.091 | 42% | 0.22 |
200 | 0.05 | 0.077 | 37% | 0.25 |
200 | 0.04 | 0.087 | 47% | 0.16 |
230 | 0.036 | 0.074 | 45% | 0.15 |
250 | 0.04 | 0.062 | 37% | 0.2 |
270 | 0.04 | 0.054 | 33% | 0.21 |
270 | 0.036 | 0.058 | 38% | 0.17 |
300* | 0.04 | 0.045 | 28% | 0.24 |
300* | 0.036 | 0.055 | 42% | 0.13 |
325* | 0.036 | 0.042 | 29% | 0.21 |
325 | 0.028 | 0.05 | 41% | 0.13 |
350* | 0.03 | 0.043 | 34% | 0.16 |
400* | 0.03 | 0.034 | 27% | 0.18 |
500* | 0.025 | 0.026 | 26% | 0.16 |
Mesh | Wire Diameter | Weave | |||
Warp | Shute | ||||
in | mm | in | mm | ||
12x64 | 0.023 | 0.58 | 0.0165 | 0.42 | Plain |
14x88 | 0.019 | 0.48 | 0.012 | 0.30 | Plain |
14x110 | 0.016 | 0.40 | 0.011 | 0.28 | Plain |
24x110 | 0.014 | 0.355 | 0.010 | 0.25 | Plain |
16X200 | 0.014 | 0.355 | 0.010 | 0.25 | Twill |
30X150 | 0.009 | 0.23 | 0.007 | 0.18 | Plain |
20X200 | 0.0135 | 0.34 | 0.011 | 0.28 | Twill |
40X200 | 0.007 | 0.18 | 0.0055 | 0.14 | Plain |
20X300 | 0.010 | 0.25 | 0.007 | 0.18 | Twill |
30X250 | 0.010 | 0.25 | 0.008 | 0.20 | Twill |
20X350 | 0.010 | 0.25 | 0.006 | 0.15 | Twill |
20X250 | 0.010 | 0.25 | 0.0082 | 0.21 | Twill |
50X600 | 0.007 | 0.18 | 0.0035 | 0.09 | Twill |
28X400 | 0.007 | 0.18 | 0.005 | 0.13 | Twill |
50X250 | 0.0055 | 0.14 | 0.0045 | 0.11 | Plain |
28X500 | 0.007 | 0.18 | 0.0045 | 0.11 | Twill |
50X700 | 0.0055 | 0.14 | 0.003 | 0.076 | Twill |
80X700 | 0.004 | 0.10 | 0.003 | 0.076 | Twill |
100X1000 | 0.004 | 0.10 | 0.002 | 0.051 | Twill |
165X800 | 0.0028 | 0.071 | 0.002 | 0.05 | Twill |
165X1400 | 0.0028 | 0.071 | 0.0016 | 0.04 | Twill |
200X1400 | 0.0028 | 0.071 | 0.0016 | 0.04 | Twill |
325X2300 | 0.0014 | 0.035 | 0.001 | 0.025 | Twill |
